MOTION CAPTURE CAMERAS

Powerful. Flexible. Upgradable.

Whatever your application, we've got the camera. Explore our range of next-generation motion capture cameras and capture large volumes of high-quality data.

Exlpore the range Talk to sales

12 MP

MAX RESOLUTION

810 fps

MAX FRAMERATE

40+ yrs

MOCAP HERITAGE

MOTION CAPTURE CAMERAS

Four camera families, one connected system

Mix and match across our hardware to build the configuration that fits your volume, application, and budget - with an upgrade path built in.

Rainbow Greenline motion capture camera with a green casing and black lens

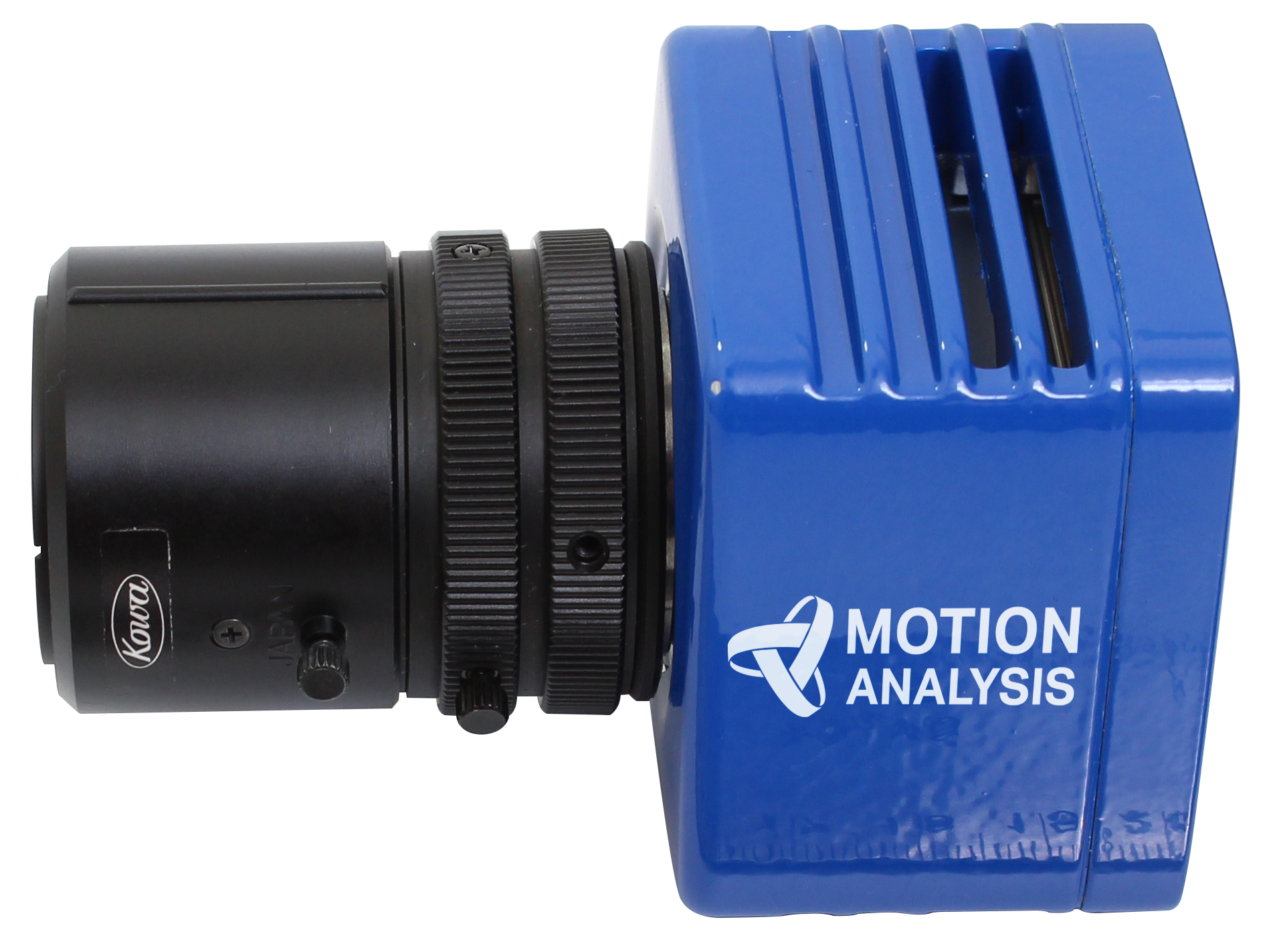

Markerless cameras - Rainbow range

Cutting-edge full-color video cameras. Use them for standalone markerless systems, or to record reference video alongside your markered collections.

Paired with our Thunderbird cameras, Rainbow enables hybrid markered/markerless mocap with true frame-by-frame synchronization and syncs fully with other devices like EMG sensors and force plates.

Standard models come in 1.3 MP and 3.2 MP resolution formats. Higher resolutions up to 12.3 MP are available.

Learn more →

Thunderbird

Our next-generation mocap camera line: five cameras for both active and passive markers, available in resolutions up to 12 MP. They offer a wider lens selection than our Kestrel line and greater field-of-view advantages.

Thunderbird is built on the latest core technology - GigE camera-standard communication, modern field-programmable gate arrays, and built-in PTP-based output synchronization - for superior network robustness and future-proof compatibility.

Explore Thunderbird →

Kestrel Plus

Our Kestrel Plus cameras are the proven industry workhorses - over-engineered, high-performance, and exceptional value, with true plug-and-play setup. They're fully backward compatible with our previous Kestrel and Raptor systems.

Four cameras that work with both active and passive markers, available in 300, 1300, 2200, and 4200.

Explore Kestrel Plus →

Active marker cameras

Compact, robust, and great value — ideal for studios starting out with mocap. BaseCam is the entry-level model, available as a set of 12 cameras and pairs with our lightweight Basix Go software.

More advanced are the 0.4 MP Icefall and 1.6 MP Lhotse, which integrate with each other, the Thunderbird range, and both Basix Go and Cortex software. Each upgrades cleanly to Thunderbird 400 and 1600 respectively - adding passive marker tracking.

Explore active marker cameras →

Spec Sheet

Camera capability comparison

Resolutions, framerates, and compatibility across the full range. Cameras within the same family integrate with each other out of the box.



          Camera
          Type
          Resolution (MP)
          FPS at full res
          Compatible with*


      Reference & markerless

          Rainbow
          Reference / Markerless
          1.3
          80
          All other cameras


          Rainbow 3
          Reference / Markerless
          3.2
          180
          All other cameras

Thunderbird

          Thunderbird 400
          Active / Passive
          0.4
          400
          Icefall, Lhotse, Thunderbird


          Thunderbird 1600
          Active / Passive
          1.6
          160
          Icefall, Lhotse, Thunderbird


          Thunderbird 3200
          Active / Passive
          3.2
          190
          Icefall, Lhotse, Thunderbird


          Thunderbird 5100
          Active / Passive
          5.1
          141
          Icefall, Lhotse, Thunderbird


          Thunderbird 12M
          Active / Passive
          12
          63
          Icefall, Lhotse, Thunderbird

Kestrel Plus

          Kestrel 300 Plus
          Active / Passive
          0.3
          810
          Kestrel and Raptor


          Kestrel 2200 Plus
          Active / Passive
          2.2
          332
          Kestrel and Raptor


          Kestrel 4200 Plus
          Active / Passive
          4.2
          200
          Kestrel and Raptor

Active marker

          Icefall
          Active
          0.4
          400
          Icefall, Lhotse, Thunderbird


          Lhotse
          Active
          1.6
          160
          Icefall, Lhotse, Thunderbird




*Compatibility refers to systems that integrate natively within the same setup.

Camera	Type	Resolution (MP)	FPS at full res	Compatible with*
Reference & markerless
Rainbow	Reference / Markerless	1.3	80	All other cameras
Rainbow 3	Reference / Markerless	3.2	180	All other cameras
Thunderbird
Thunderbird 400	Active / Passive	0.4	400	Icefall, Lhotse, Thunderbird
Thunderbird 1600	Active / Passive	1.6	160	Icefall, Lhotse, Thunderbird
Thunderbird 3200	Active / Passive	3.2	190	Icefall, Lhotse, Thunderbird
Thunderbird 5100	Active / Passive	5.1	141	Icefall, Lhotse, Thunderbird
Thunderbird 12M	Active / Passive	12	63	Icefall, Lhotse, Thunderbird
Kestrel Plus
Kestrel 300 Plus	Active / Passive	0.3	810	Kestrel and Raptor
Kestrel 2200 Plus	Active / Passive	2.2	332	Kestrel and Raptor
Kestrel 4200 Plus	Active / Passive	4.2	200	Kestrel and Raptor
Active marker
Icefall	Active	0.4	400	Icefall, Lhotse, Thunderbird
Lhotse	Active	1.6	160	Icefall, Lhotse, Thunderbird

NEED HELP CHOOSING?

Not sure which camera is best for your application?

Our friendly sales team is happy to help you calculate the best configuration for your application and volume. You can also download our camera comparison sheet.

Get in touch

Book a 30-minute demo

See our cameras in action, share advice, and walk away with a quote tailored to your space.

Book a demo →
